40mm*40mm UHF 865-928 MHz Industrial Micro RFID Tag

The Gen2 UHF 865-928 MHz industrial micro RFID tag features a very small size that can be easily inserted into smaller slots for robust and consistent read rates and it is ideal for returnable transit items tracking and industrial asset tracking applications. Moreover, it supports IP68 rating and offers maximum read distance up to 13.1 ft. (4m) depend upon the reader and antenna. It is made up of high quality plastic to form a hard tag which enables it to work in rough environmental conditions. Text and barcode encoding customization options are available upon request.

FEATURES

  • Small in size
  • Dust-tight, waterproof, and chemical resistance
  • Works well on metal surfaces

APPLICATIONS

  • Asset management
  • Returnable transit items tracking
  • Retail tracking applications

Parameters

Item UHF ABS Anti-Metal Tag
Material ABS
Chip Alien H3, M4E, M4D, M4QT, MR6
Frequency 860~960 MHz
Eeprom depend on chips
Thickness 5-12 mm

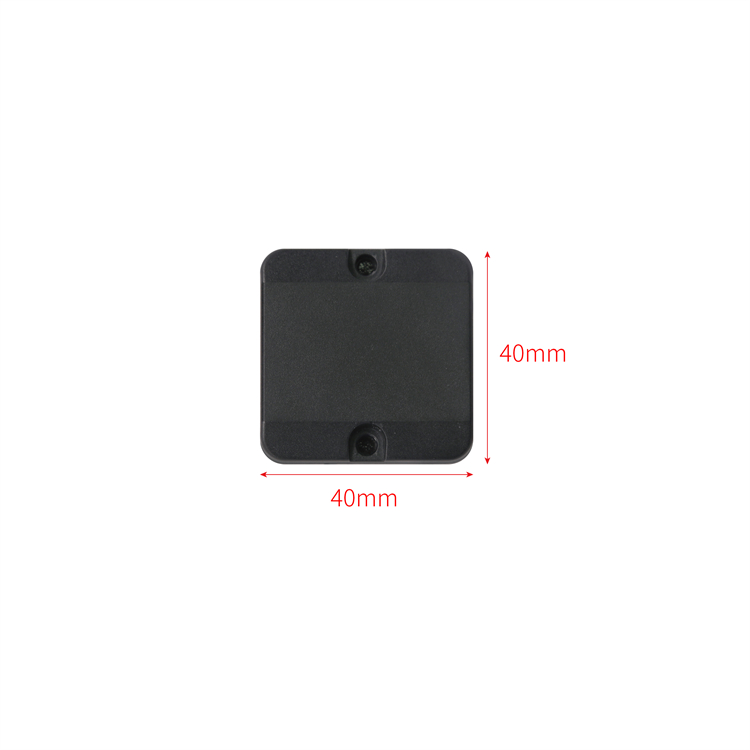

Size 40mm*40mm or Customized
Reading distance 0.5-10 m ( depends on reader and working environment )
Write Endurance 100000 times
Working Temperature -25°C to 65°C
Data Retention Time 10 years
Samples Free samples are available upon request
