Anti-metal Tags With Mifare 1K

This RFID Anti-metal tag is embedded with the most classic RFID chip- Mifare 1K, working on 13.56 MHz, among high-frequency anti-metal tag. It can work on the metal surface, for example, sticking on your mobile phone to achieve some NFC interaction.

Xinyetong Mifare 1K NFC anti-metal tags not only meet industry standards but also have superior quality and low cost. Each tag has passed the strict quality inspection before it reaches your hands. Besides, we can provide customized service of NFC anti-metal tags.

Ask For Price

FEATURES

  • Waterproof, acid-proof, alkali-proof, and collision-resistant
  • Contactless transmission of data and supply energy
  • Operating frequency of 13.56MHz
  • Data transfer of 106 Kbit/s
  • Data integrity of 16-bit CRC, parity, bit coding, bit counting
  • Typical ticketing transaction time of<100ms (including backup management)
  • Operating distance up to 100mm (depending on antenna geometry and reader configuration)
  • Various styles and colors are available

APPLICATIONS

  • Mobile interaction
  • Warehouse assets management
  • Medical device management
  • Consumer electronics
  • Vehicle Management
  • Indoor Equipment Management
  • Application of other metal surfaces

COMMONLY USED SIZE

Xinyetong NFC Anti-metal tags come in various sizes. Here are some commonly used sizes of NFC anti-metal tags as follows.

StyleSizeAvailable Chip

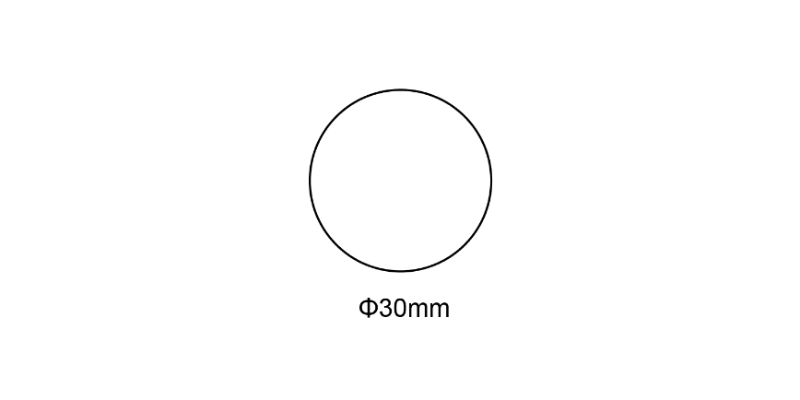

φ30 mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

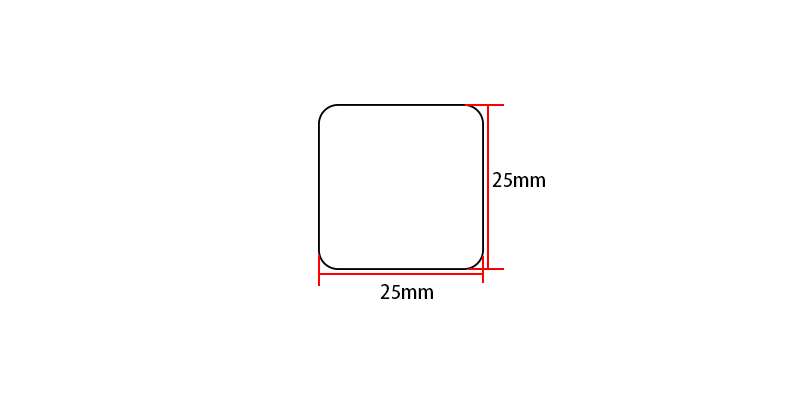

25*25 mmMifare 1k,Ntag213, Ntag215, Ntag216,etc.

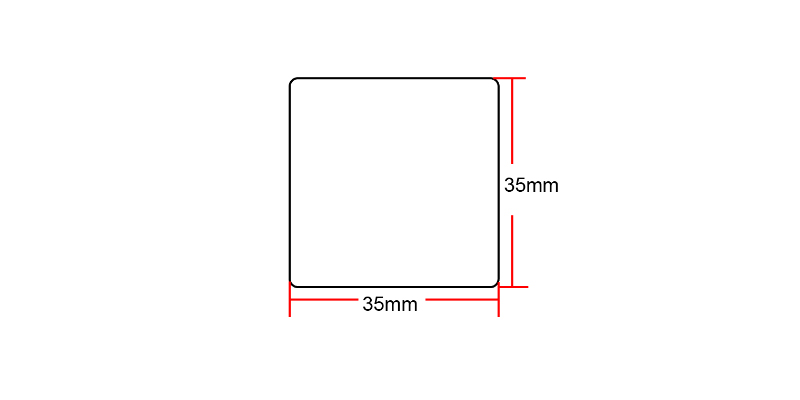

35*35mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

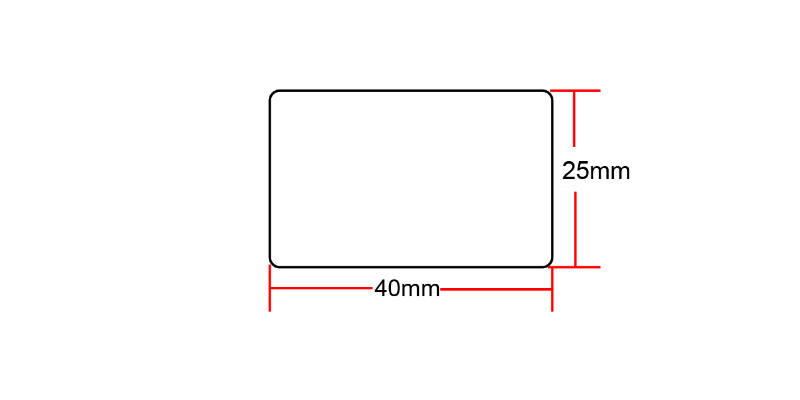

25*40mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

Parameters

ItemMifare 1K Anti-metal Tag
MaterialPVC、PET、Coated paper、Microwave absorbing material
ChipMifare 1K
Frequency13.56MHz
ProtocolISO14443A
ColorCustomizable
SizeCustom
Eeprom1024Byte
Reading distance0-10cm
Write Endurance100000 times
Working Temperature-25°C to 65°C
Data Retention Time10 years
Printing OptionsSilk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts AvailableLogo or number printing, Bar code, QR code, etc.
SamplesFree samples are available upon request
