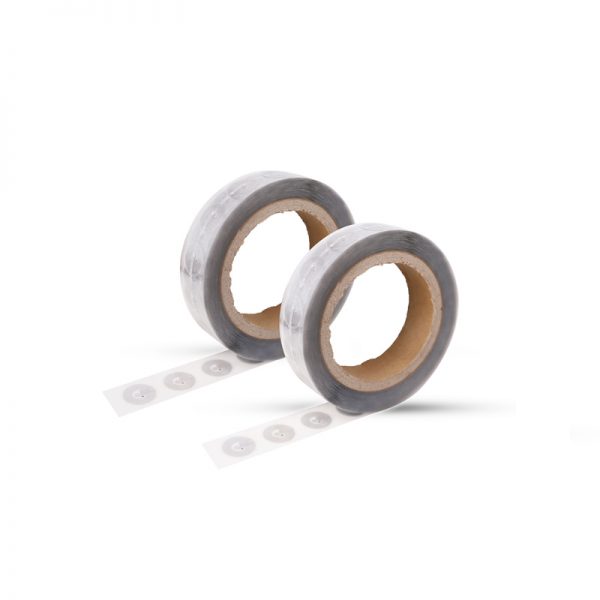

Dia 15mm HF RFID Inlay

HF RFID Inlay is based on 13.56MHz communication technology. This RFID inlay features a small size that the diameter is only 15mm. With a wide selection choice of chips and antenna, you can customize it.

Dia 15mm HF RFID Inlay, as a vital part of RFID tags, can be encapsulated into many kinds of RFID tags, such as NFC tag, RFID keyfob, etc.

Xinyetong 13.56 MHz RFID inlay comes in a variety of sizes, chips, antennas that you can choose. Whatever you want, tell us. We are a professional and reliable partner in the RFID industry.

FEATURES

  • Operating at 13.56MHz frequency
  • Long Read-write distance & stable performance
  • Fast reading and writing speed & sensitive signal response
  • The volume label of any size can be designed
  • Various materials and soft texture that can be arbitrarily packaged
  • Can read multiple at the same time, with anti-collision function
  • Support for customized services

APPLICATIONS

  • New retail Management
  • Asset management
  • Access Control Management
  • Enterprise park
  • Anti-counterfeiting application
  • Tooling washing management
  • Large conference personnel access system
  • Pharmaceutical logistics system management
  • Intelligent shelf management
  • Jewelry inventory management

AVAILABLE OPTIONS

Available ShapeAvailable SizeAvailable Chip
14.6*14.6mmNtag213, Ntag215, Ntag216,Ultralight/F08/I code sli/I code sliX etc
φ20mmNtag213, Ntag215, Ntag216,Ultralight/F08/I code sli/I code sliX etc
26*11mmNtag213, Ntag215, Ntag216,Ultralight/F08/I code sli/I code sliX etc
32*32mmNtag213, Ntag215, Ntag216,Ultralight/F08/I code sli/I code sliX etc

Parameters

Item Dia 15mm HF RFID Inlay
Chip Ntag213, Ntag215, Ntag216,Ultralight/F08/I code sli/I code sliX etc
Frequency 13.56 MHz
Protocol ISO14443/ISO15693
Antenna Material Aluminum
Size Dia15mm or Customized
Material Coated paper, Glossy paper, Matte paper, or PET
Reading distance 0-10cm
Write Endurance 100000 times
Working Temperature -25–65℃
Data Retention Time 10 years
Printing Options Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available Logo or number printing, Bar code, QR code, etc.
Samples Free samples are available upon request

Product Specification Download
