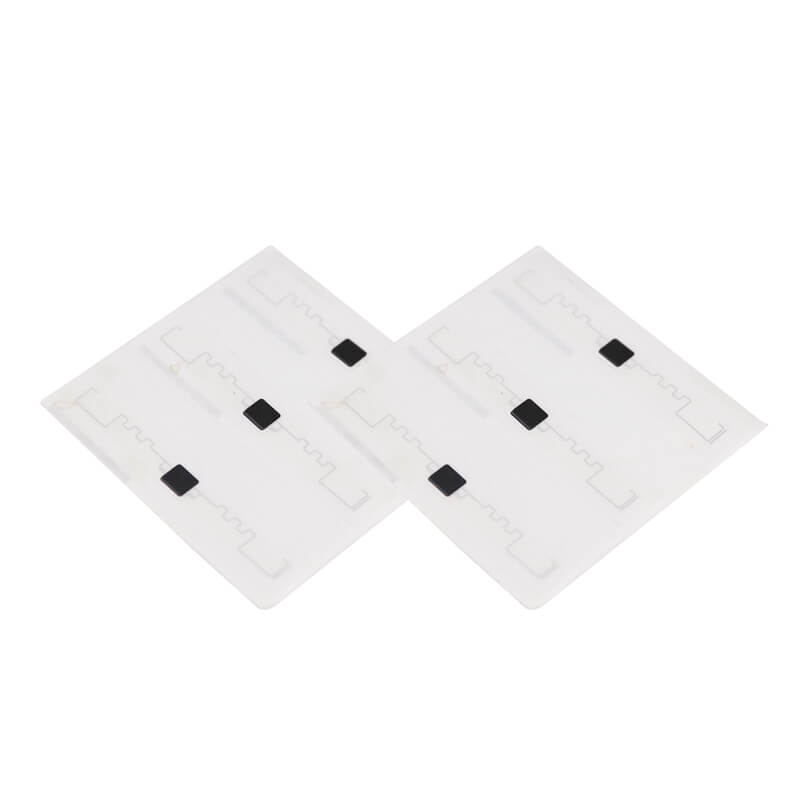

Headlight RFID Tag With UHF Antenna

The UHF Headlight RFID tag is predicated on passive UHF technology. The tag doesn’t contain A battery and is maintenance-free.

The UHF Headlight Tag may be a transparent adhesive to permit quick and straightforward installation onto the headlight of the vehicle. The thin, flexible, UHF sticker format is straightforward to put in and offers a tamper resistant automatic vehicle identification solution by affixing it to the headlight. For added security, the UHF Headlight Tag is tamper evident. The tags will show visual proof of removal and are difficult to get rid of intact and functional*. The chip inside the tag is protected against harmful UV rays

FEATURES

  • Vehicle identification up to 5 meters (16 ft)
  • Based on battery-free UHF technology (EPC Gen 2)
  • Transparent, tamper proof adhesive for headlight mounting
  • Battery-free operation
  • RAIN compliant
  • The HeadLight Tag is useful for vehicles with metalized windshields

APPLICATIONS

The UHF Headlight Tags is out there with various programming formats, ensuring compatibility with any installation. Wiegand and Magstripe formatted tags are available to enrich any access control application. Typical applications include vehicle access to car parks, gated communities/condominiums, offices etc. Other applications include access control of motorbikes, scooters and mopeds. This sticker tag is purposely designed to have adhered to the headlight. This tag is the best choice to enable reliable vehicle identification in situations where the whole car windshield is roofed by the solar film with metal particles.

Parameters

Item Headlight RFID Tag With UHF Antenna
Material PET
Chip Impinj M4QT
Frequency 860-960MHz
Eeprom 96bits EPC memory,512bits User memory
R/W Read/ Write
Protocol ISO 18000 6C
Color Blue, Red, Yellow, Green, black, etc
Size Custom
Reading distance 0-10m
Write Endurance 100000 times
Working Temperature -25°C to 65°C
Data Retention Time 10 years
Samples Free samples are available upon request

Product Specification Download
