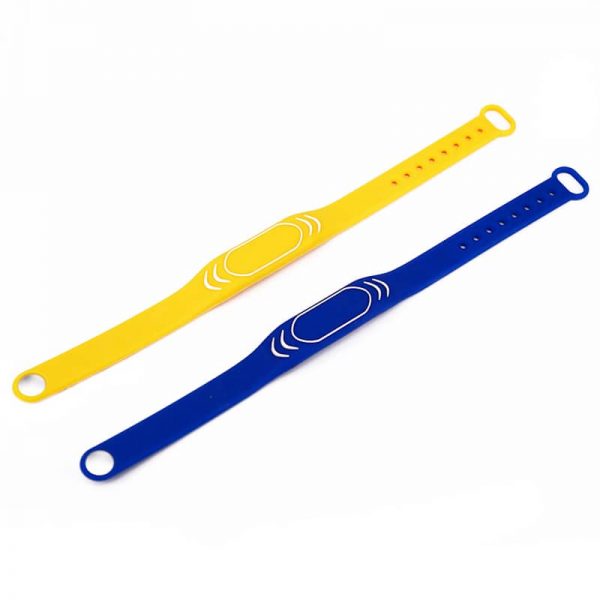

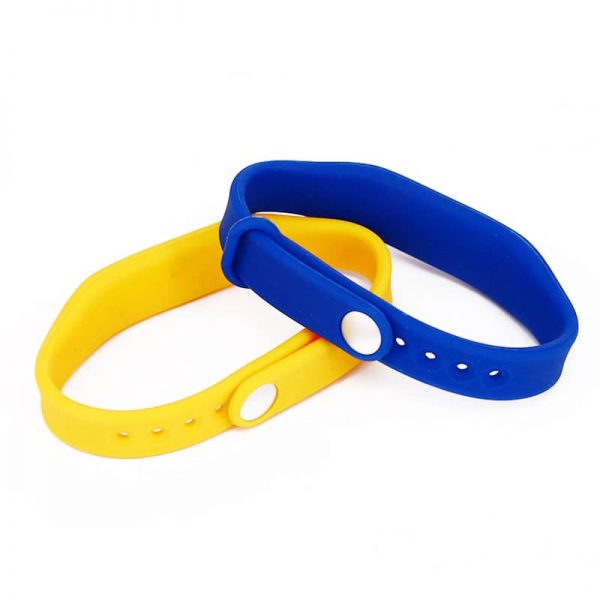

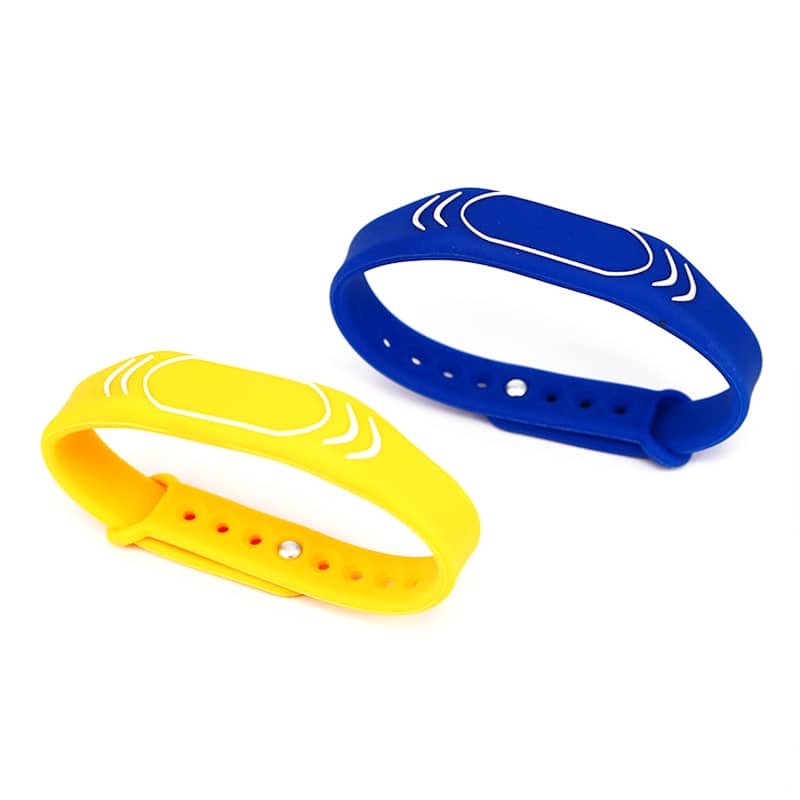

ISO 14443A RFID Silicone Wristband With Mifare 1k Chip

As we all know, RFID silicone wristbands can achieve different functions according to different embedded chips. This RFID silicone wristband uses the most classic chip-Mifare 1K chip(MF S50) with an intelligent anticollision function to operate more than one wristband in the field simultaneously.

Mifare 1K RFID silicone wristband conforms to ISO/IEC 14443 Type-A and is widely used. Xinyetong RFID silicones support logo printing, serial number printing, laser engraving (engraving UID), and other crafts. Besides, you can customize it. Contact us now.

FEATURES

  • FDA level silicone rubber material, Non-toxic, non-corrosive, environment-friendly
  • Durable, waterproof, and heat-resisting
  • Soft, skin-friendly and comfortable
  • Contactless transmission of data and supply energy
  • Operating frequency of 13.56MHz
  • Data transfer of 106 Kbit/s
  • Data integrity of 16-bit CRC, parity, bit coding, bit counting
  • Typical ticketing transaction time of<100ms (including backup management)
  • Operating distance up to 100mm (depending on antenna geometry and reader configuration)

APPLICATIONS

  • Swimming pools
  • Bath center
  • Hotel management
  • Amusement parks
  • Exhibitions
  • Carnival
  • Music Festival
  • Event Ticketing

COMMONLY USED SIZE

Xinyetong can offer various silicone wristbands for different occasions. Here are some popular silicone wristband models as follows, and if you want to see more models, you can download our RFID Wristband Catalogue Datasheet.

StyleModelSizeTypeAvailable Chip
XYT-004Φ52/62 mmThin BandMifare 1k, Ntag213, Ntag215, Ntag216,etc.
XYT-007250*17 mmAdjustableMifare 1k,Ntag213, Ntag215, Ntag216,etc.
XYT-019230*25 mmAdjustableMifare 1k, Ntag213, Ntag215, Ntag216,etc.
XYT-020262*18 mmAdjustableMifare 1k, Ntag213, Ntag215, Ntag216,etc.

Parameters

Item RFID Silicone Wristband With Mifare 1k Chip
Material Silicone
Chip Mifare 1K
Frequency 13.56MHz
Protocol ISO14443A
Color Blue, red, white, black, purple, green, purple, orange (Customizable)
Size Φ52/62 mm, 230*25 mm, 262*18 mm, 250*17 mm,etc.
Eeprom IK
Reading distance 0-10cm
Write Endurance 100000 times
Working Temperature -25°C to 65°C
Data Retention Time 10 years
Printing Options Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available Logo or number printing, Bar code, QR code, etc.
Samples Free samples are available upon request
