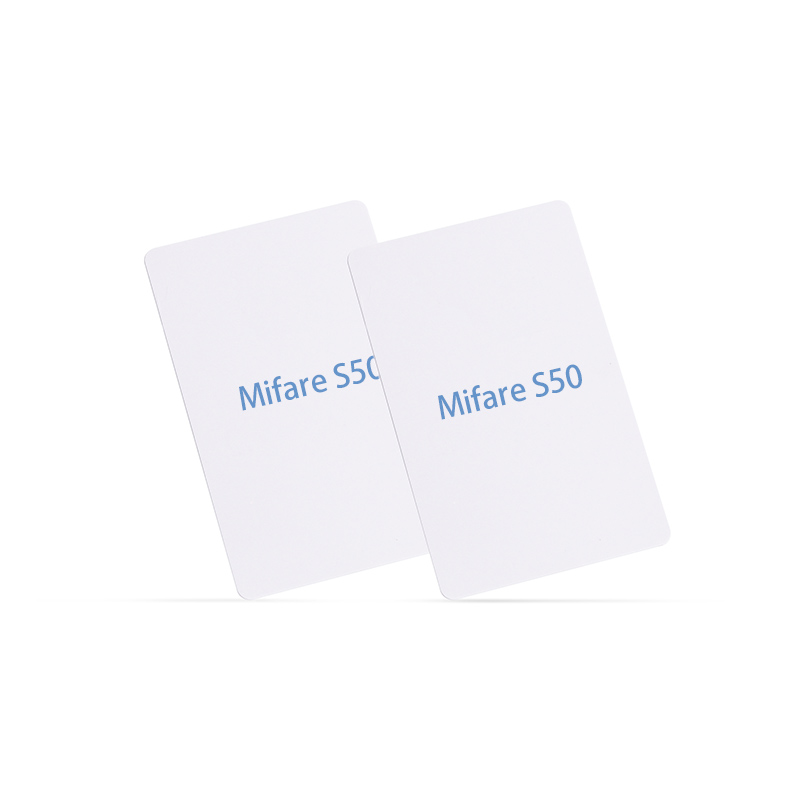

Mifare S50 Chip Card

Mifare S50 Chip developed by NXP is designed to use in contactless smart cards. So Mifare S50 Chip Card was born. This smart card works on 13.56MHz frequency and complies with the ISO 14443 Type-A standard. It is widely used in public transport ticketing, access management, E-card system, etc.

Besides, the F08 chip is completely compatible with Mifare S50, including usage, function, etc. Xinyetong specializes in card-making and we can provide a variety of RFID cards with good prices and high quality.

FEATURES

  • Contactless transmission of data and supply energy
  • Intelligent anticollision
  • Operating frequency of 13.56MHz
  • Data transfer of 106 Kbit/s
  • Data integrity of 16-bit CRC, parity, bit coding, bit counting
  • The Individual set of two keys per sector to support multi-application with key hierarchy
  • Typical ticketing transaction time of<100ms (including backup management)
  • Operating distance up to 100mm (depending on antenna geometry and reader configuration)
  • Fine workmanship and good quality: flat and smooth, without burrs
  • Support double-sided printing
  • Support customization, including color, craft, printing, size, etc.

APPLICATIONS

  • Public Transportation
  • Access Management
  • Electronic Toll Collection
  • Membership Management
  • Attendance Management
  • Employee Cards
  • Hotel key cards
  • School and Campus Cards
  • Parking Lot Management

Parameters

Item Mifare S50 Chip Card
Material PVC or PET
Chip Mifare S50
Protocol ISO/IEC 14443
Frequency 13.56 MHz
Memory 1kB
Color Custom
R/W Read and Write
Reading Distance 1~10 cm
Craft silkscreen logo/Laser serial number/UID print, etc
Surface Glossy/Matt/Frosted
Working Temperature -20~+70°C
Size 85.5*54mm
Data Retention 10 years
Erase Cycle 100,000 times
Samples Free samples are available upon request

Product Specification Download
