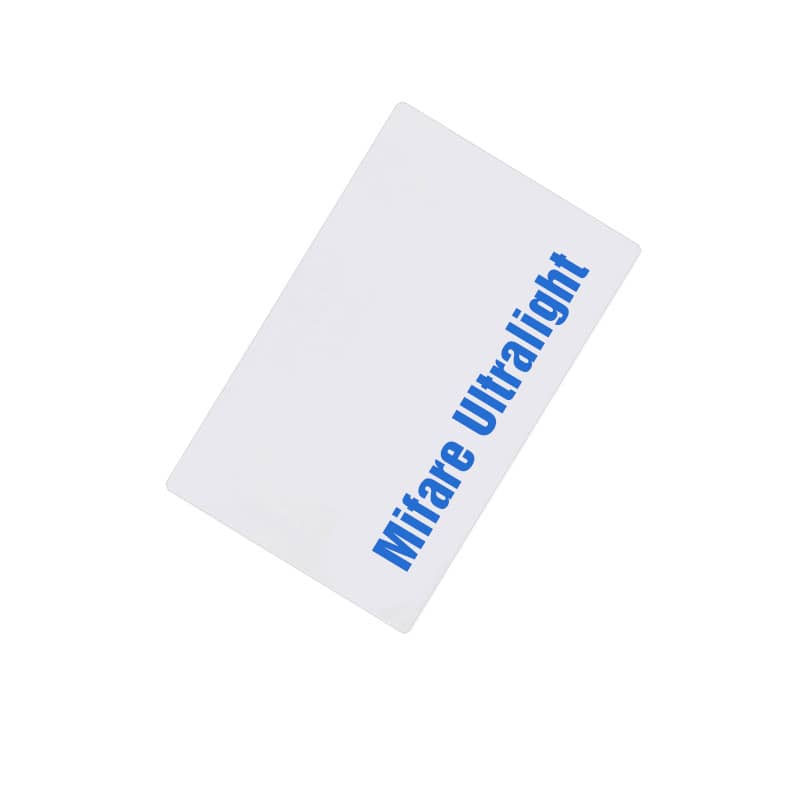

Mifare Ultralight RFID Blank Card

Mifare Ultralight RFID blank card is one of the HF frequency RFID cards with a white surface, embedded in the Mifare Ultralight EV1 chip. It is an easy and cost-efficient way to achieve contactless access control, identification, etc.

Mifare Ultralight EV1 chip is available in 2 memory options: 48 Bytes and 128 Bytes. You can choose according to your applications. If you are looking for a reliable supplier to buy RFID blank cards, Xinyetong is your best choice.

FEATURES

Advantages of Xinyetong RFID blank cards:

High quality & Low cost
Exquisite in craftsmanship: smooth and without burrs, no indentation.
Timely delivery and good packing
Support customization & Wholesale
Excellent pre-sale and post-sale service
12 years of card-making experience
Support customization & Wholesale

Features and Benefits of Mifare Ultralight EV1:

Contactless transmission of data and supply energy
Data transfer of 106 Kbit/s
Data integrity of 16-bit CRC, parity, bit coding, bit counting
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
Fast counter transaction:<10 ms
True anticollision
Typical ticketing transaction:<35 ms
Operating distance up to 100 mm (depending on antenna geometry and reader configuration)
Manufacturer programmed 7-byte UID for each device
32-bit user definable One-Time Programmable (OTP) area
3 independent 24-bit true one-way counters
Field programmable read-only locking function per page (per 2 pages for the extended memory section)
ECC-based originality signature
32-bit password protection to prevent unintended memory operations

APPLICATION

VIP membership management
Parking lot
Loyalty
Public transportation
Event Ticketing(stadiums, exhibitions, leisure parks, etc.)
Campus access control management
Limited-use tickets in public transport

Customized Service

Standard Mifare Ultralight blank card is the same size as a credit card: CR80 (85.5*54mm), but you can customize it. Xinyetong offers customized services, and you can tell us what kind of RFID blank card you need, including chip, size, shape, and other requirements.

Relevant articles

Parameters

Item	Mifare Ultralight RFID blank card
Material	PVC
Chip	Mifare Ultralight
Frequency	13.56MHz
Protocol	ISO14443A
Color	White
Size	CR 80 or Custom
Reading distance	0-10cm
Write Endurance	100000 times
Working Temperature	-25°C to 65°C
Data Retention Time	10 years
Printing Options	Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available	Logo or number printing, Bar code, QR code, etc.
Samples	Free samples are available upon request
