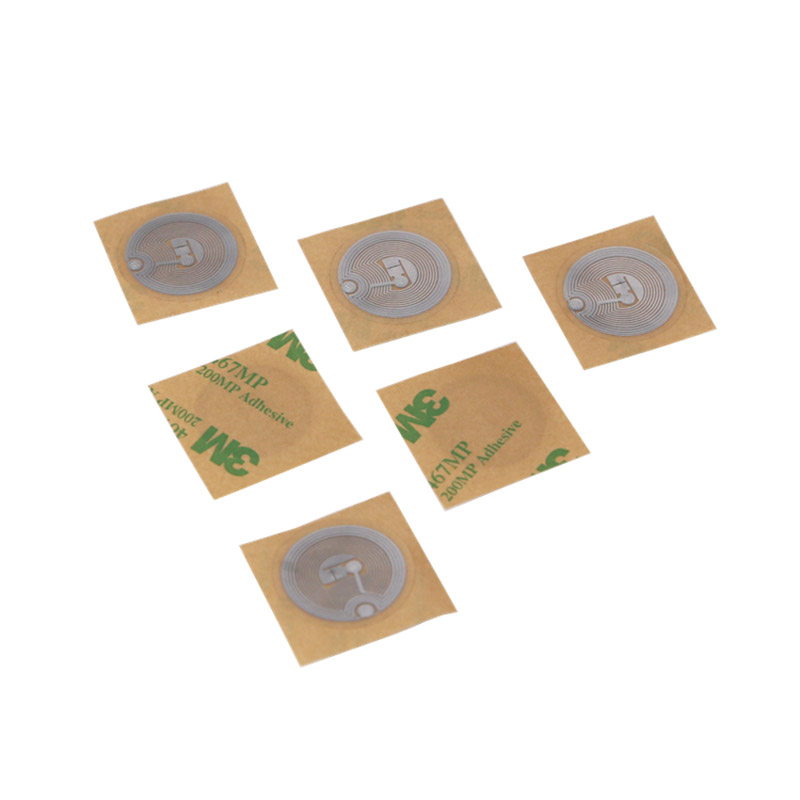

NTAG213 Wet Inlay NFC Tag

Xinyetong wet inlays come in many sizes, patterns, chips that you can choose from. Now, we are going to introduce the Ntag213 wet inlay NFC sticker to you, which is very popular with high-security performance and good compatibility.

Xinyetong has more than 10 years of experience in RFID production, and millions of RFID products are exported to the word. Here, you can get good products and excellent service.

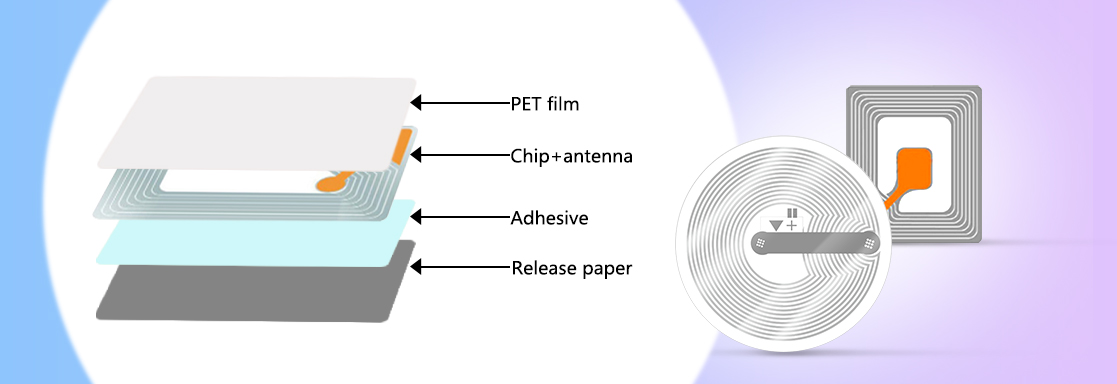

What is Wet Inlay? Wet Inlay, one of the RFID Inlay, is composed of dry inlay, an adhesive layer, and release paper. Strictly speaking, it is a semi-finished product, which is an important part of RFID cards, RFID tags, RFID wristbands, and other RFID products. But Wet Inlay has an adhesive backing, like RFID sticker, which is easy to stick on to surfaces. Therefore, it is also a low-cost RFID solution for batch marking products that do not need to print information on the tag.

The Ntag213 Wet Inlay, embedded Ntag213 chip, features higher RF performance and Superior security, suitable for the application with high-security performance requirements, such as payment, etc.

FEATURES

  1. Construction: Chip & Antenna+ Adhesive+ Release paper
  2. High-security performance & Good compatibility
  3. Operating frequency of 13.56MHz
  4. Reading distance: up to 100mm
  5. 144 bytes of user data
  6. Can be erased and reprogrammed about 10,000 times
  7. Wide application: Retail Environment, Social Media, Games & Toys, Location, Media & Ads, Business Cards, Loyalty Apps, Electronics Pairing, Product Authentication, Ticketing & Payment, Library Management, etc.

COMMONLY USED SIZE

We offer customized services, and our wet inlays come in various sizes you can choose from. Here are some commonly used sizes as follows.

Available ShapeCommonly Used SizeAvailable Chip

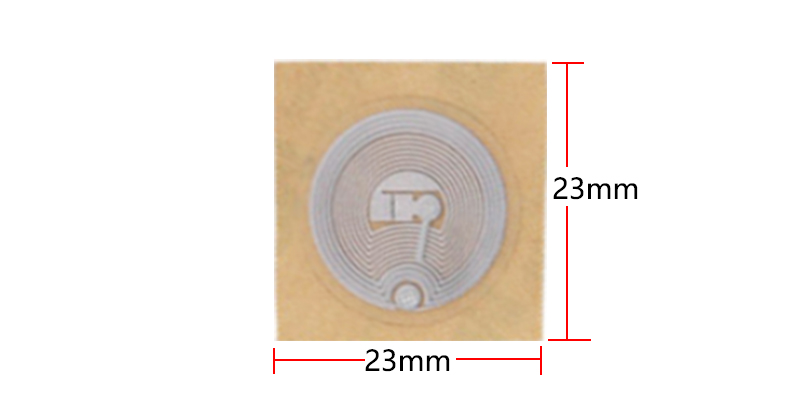

φ23mmNtag213, Ntag215, Ntag216

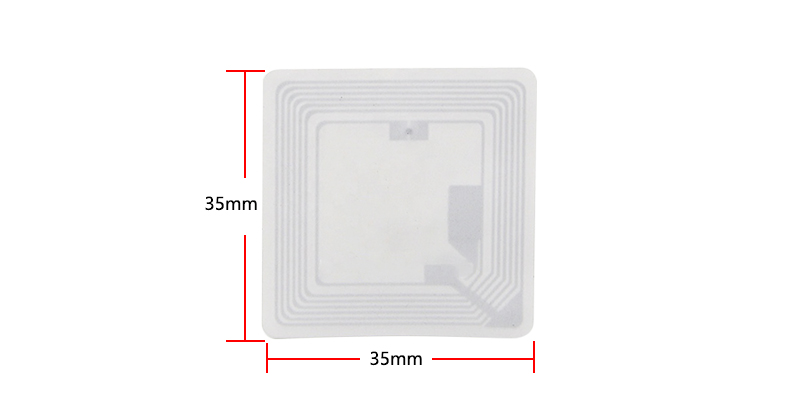

35x3535*35mmNtag213, Ntag215, Ntag216

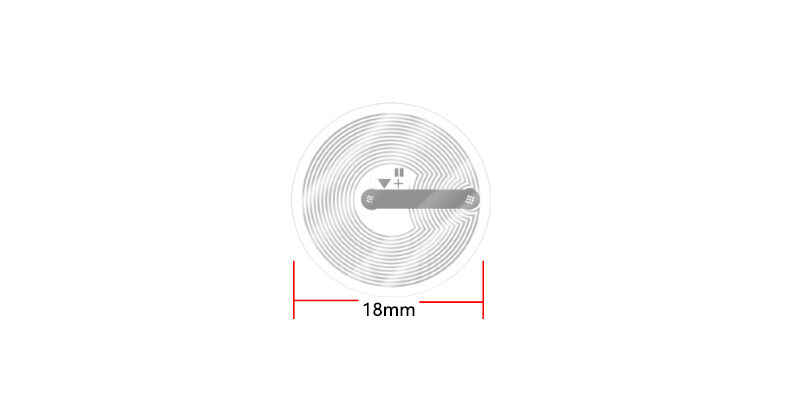

φ18mmφ18mmNtag213, Ntag215, Ntag216

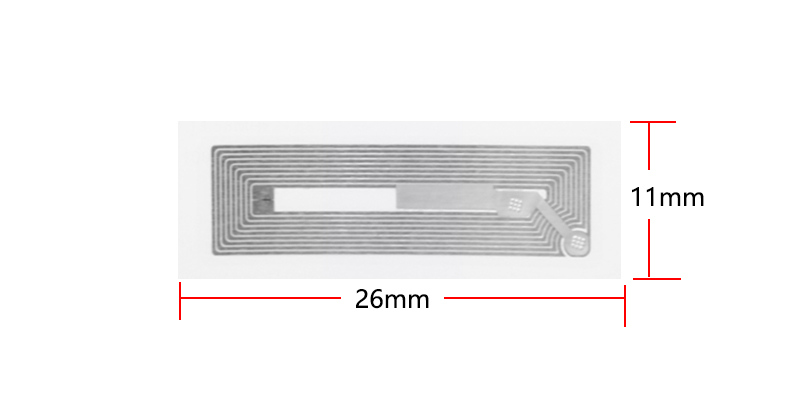

11x2611*26mmNtag213, Ntag215, Ntag216

Parameters

Item NTAG213 Wet Inlay NFC Tag
Chip NTAG213
Frequency 13.56MHz
Protocol ISO14443A
Size 18*18mm, 30*30.5mm, 35*35mm, 42*42mm, 45*18mm,etc.
Memory 144 bytes
Reading distance 0-10cm
Write Endurance 100000 times
Working Temperature -25–65℃
Data Retention Time 10 years
Printing Options Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available Logo or number printing, Bar code, QR code, etc.
Samples Free samples are available upon request

Product Specification Download
