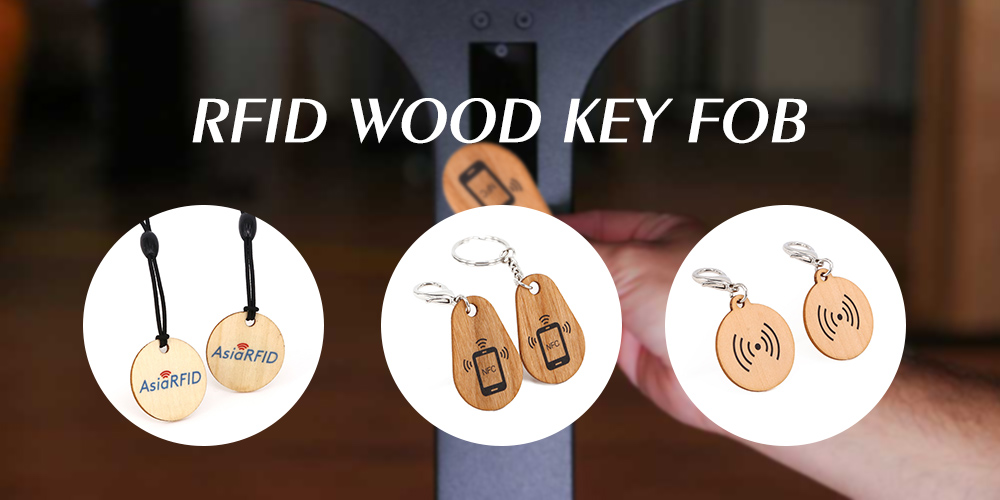

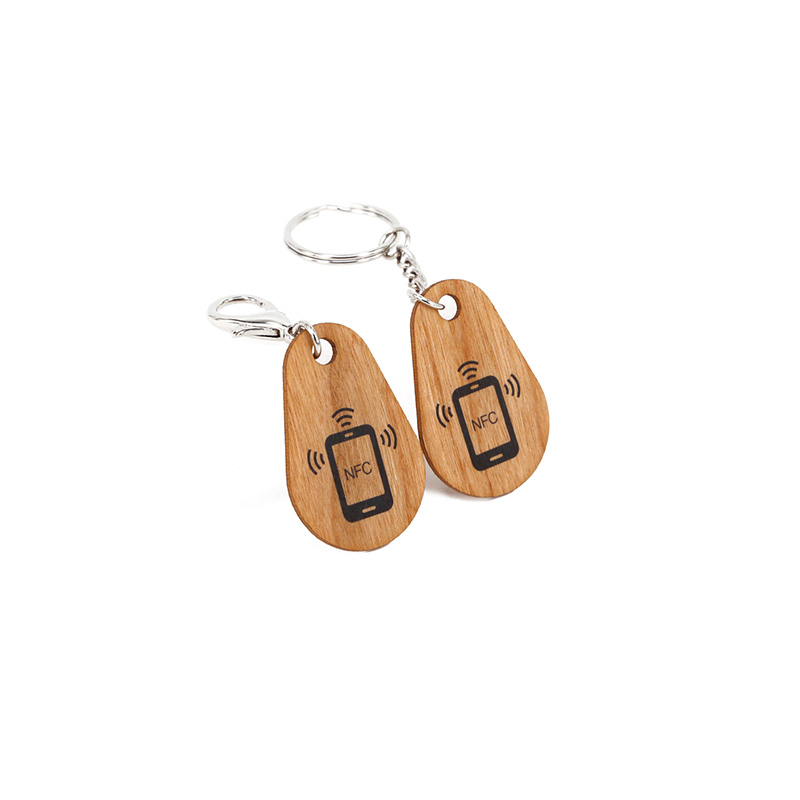

RFID Wooden Key Fob

RFID Wooden Key Fob, also called Wooden Proximity keys, is made of natural wood material, delicate, firm, and no deformation. Its greatest feature is environmentally friendly, making it special and unique.

Wooden Proximity Key Fob can also be as colorful as PVC key Fob. Silk-screen printing, Laser Engraving, and CMYK full color are available. There are also many possibilities for styles of wooden Keyfob.

You can tell us your requirements, and Xinyetong will make it for you. If you’d like to learn more or get additional product information about the wooden key fobs and tags we offer, feel free to contact us.

FEATURES

Delicate, firm, no deformation
Environmentally friendly
Available with stretch rope or key chain, easy to carry
Various shapes, colors, sizes, and crafts are available
Support silk-screen printing, Laser Engraving, CMYK full-color printing
LF chips, HF chips, and UHF chips are available
Operating range up to 100mm (depending on various parameters)
Wide application: Access control management, membership management, parking management, child pickup, cashless payment, social interaction, etc.

AVAILABLE CHIPS

LF 125kHz Chips

Chip Name	Protocol	Capacity	Frequency
TK4100	/	64 bits	125 kHz
EM4200	/	128 bits	125 kHz
EM4305	/	512 bits	125 kHz
T5577	/	330 bits	125 kHz

HF 13.56 MHz Chips

Chip Name	Protocol	Capacity	Frequency
Ntag213	ISO14443A	180 byte	13.56 MHz
Ntag215	ISO14443A	540 byte	13.56 MHz
Ntag216	ISO14443A	924 byte	13.56 MHz
MIFARE Classic 1K	ISO14443A	1 KB	13.56 MHz
MIFARE Classic 4K	ISO14443A	4 KB	13.56 MHz
MIFARE Ultralight EV1	ISO14443A	80 byte	13.56 MHz
MIFARE Ultralight C	ISO14443A	192 byte	13.56 MHz
ICODE SLIX	ISO15693	1024 bits	13.56 MHz

860~960 MHz UHF Chips

Chip Name	Protocol	Capacity	Frequency
Alien H3	ISO18000-6C	512 bits	860~960 MHz
Impinj Monza 4	ISO18000-6C	96 bits	860~960 MHz
UCODE G2iL	EPCglobal Class1Gen2	128 bits	860~960 MHz

Parameters

Item	RFID Wooden Key Fob
Material	Wooden
Chip	LF chips/ HF chips
Frequency	125 kHz or 13.56MHz
Protocol	ISO14443A
Size	Custom
Memory	Depend on chips
Reading distance	0-10cm
Write Endurance	100000 times
Working Temperature	-25°C to 65°C
Data Retention Time	10 years
Printing Options	Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available	Logo or number printing, Bar code, QR code, etc.
Samples	Free samples are available upon request
